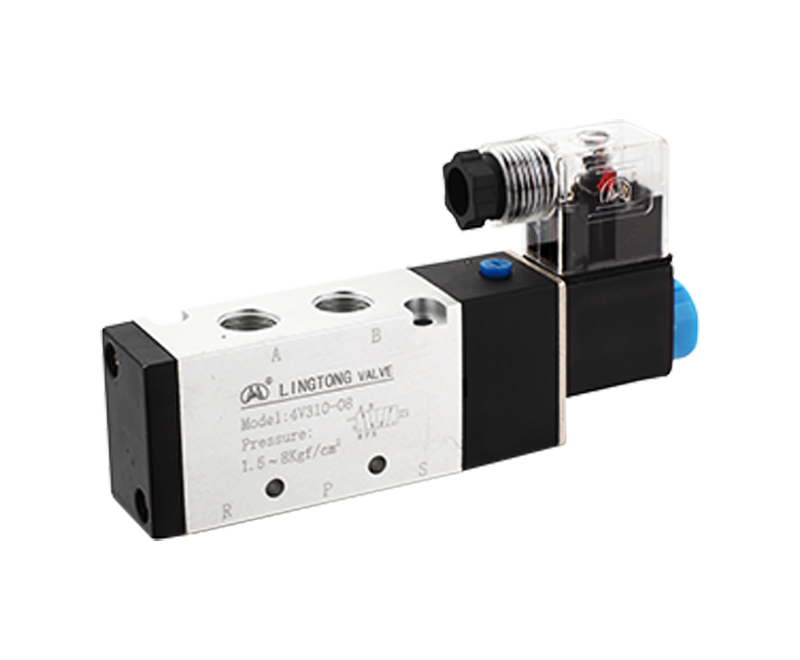

OEM 300 series solenoid valve

300 series solenoid valve
  • 300 series solenoid valve

300 series solenoid valve

Location:China
Business Type:Manufacturer, Exporter
Brands:Own Brand, OEM,
Certificate:ISO9001, CE
Model:
Terms of payment and delivery:FOB NINGBO
Minimum order quantity:1 PCS
Price:Consultation
Delivery time:15 days after confirmation of artwork and deposit
Payment method:TT 30% deposit，balance against BL copy
Quote Now

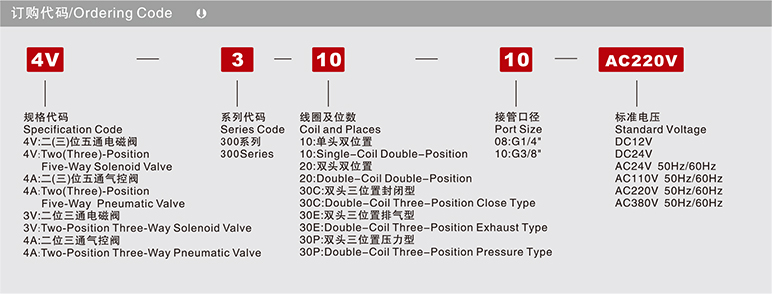

Order code

Specification

Model 3V310-8 3V320-08 3V310-08 3V320-08 4V310-08 4V320-08 4V320C-08 4V320E-08 4V320P-08 4V310-10 4V320-10 4V320C-10 4V320E-10 4V320P-10
3A310-8 3A320-08 3A310-08 3A320-08 4A310-08 4A320-08 4A320C-08 4A320E-08 4A320P-08 4A310-10 4A320-10 4A320C-10 4A320E-10 4A320P-10
Working Medium 40 Micron Filtered Air
Operating Method Internal Pilot Type
 Port size

Air Inlet=Air Outlet=Air Exhaust=G1/4"

Air Inlet=Air Outlet=G3/8"Air Exhaust=G 1/4"

Air Inlet=Air Out=Air Exhaust=G1/4"

Air Inlet=G3/8"Air Out=Air Exhaust=G1/4"
The Position Counting TWo- Position Three-Way

Two-Position Five-Way

Three-Position Five-Way

Two-Position Five-Way

Three-Position Five-Way
Working Pressure 0.15-0.8Mpa
Max Pressure Resistance 1.2Mpa
Working Temperature -5-50°C(41-122F)
Power Consumption

AC380V:2.50VA. AC220V:2.0VA.AC110V:2.5VA.AC24V:3.5VA. DC24V:3.0W. DC12V:2.5W
Voltage Range -15%~+10%

Insulation/Protection Class

 F Class IP65(DIN40050)
wire Form Lead Wire or Connector Type
Max Action Frequency 5 Cycle/Sec 3 cyce/Sec  5cyce/sec 3 Cycle/Sec
Shortest Excitation Time 0.05 Second

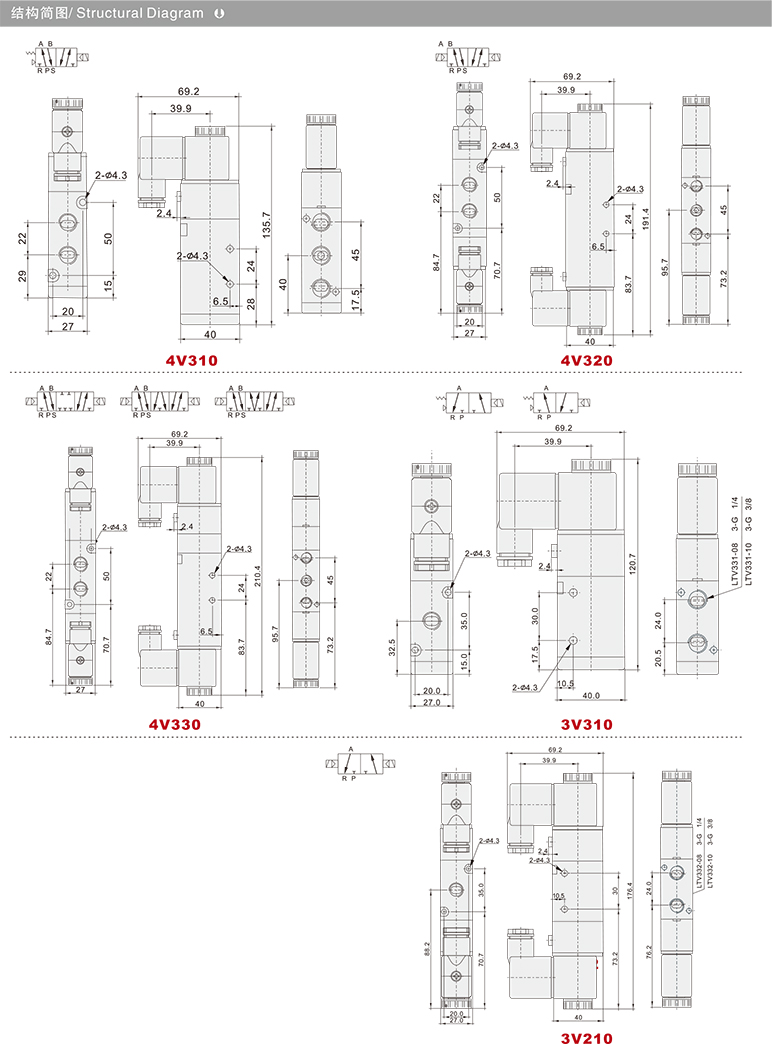

Dimensions

other information
