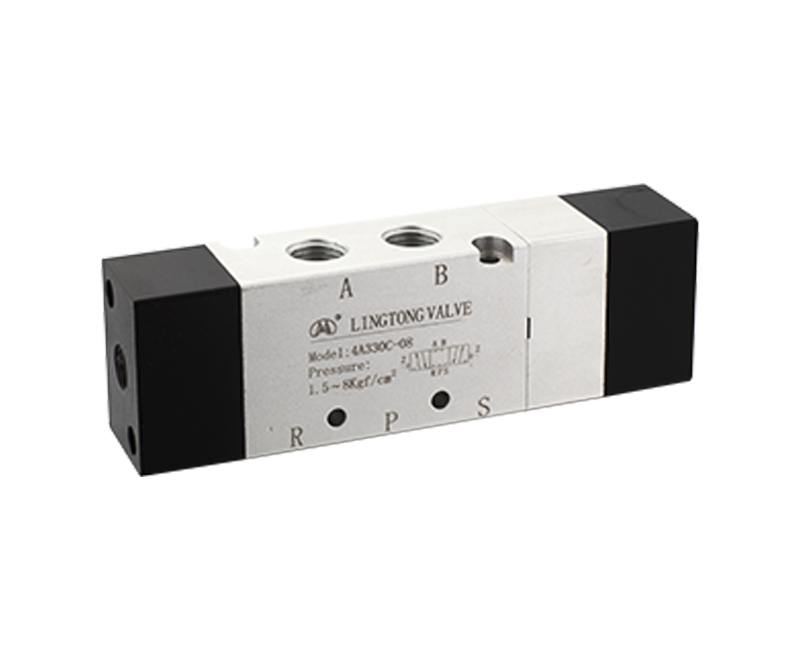

OEM 400 series air control valve

400 series air control valve
  • 400 series air control valve

400 series air control valve

Location:China
Business Type:Manufacturer, Exporter
Brands:Own Brand, OEM,
Certificate:ISO9001, CE
Model:
Terms of payment and delivery:FOB NINGBO
Minimum order quantity:1 PCS
Price:Consultation
Delivery time:15 days after confirmation of artwork and deposit
Payment method:TT 30% deposit,balance against BL copy

Specification

Model 3V310-8 3V320-08 3V310-08 3V320-08 4V310-08 4V320-08 4V320C-08 4V320E-08 4V320P-08 4V310-10 4V320-10 4V320C-10 4V320E-10 4V320P-10
3A310-8 3A320-08 3A310-08 3A320-08 4A310-08 4A320-08 4A320C-08 4A320E-08 4A320P-08 4A310-10 4A320-10 4A320C-10 4A320E-10 4A320P-10
Working Medium 40 Micron Filtered Air
Operating Method Internal Pilot Type
Port size

Air Inlet=Air Outlet=Air Exhaust=G1/4"

Air Inlet=Air Outlet=G3/8"Air Exhaust=G 1/4"

Air Inlet=Air Out=Air Exhaust=G1/4"

Air Inlet=G3/8"Air Out=Air Exhaust=G1/4"

The Position Counting TWo- Position Three-Way

Two-Position Five-Way

Three-Position Five-Way

Two-Position Five-Way

Three-Position Five-Way

Working Pressure 0.15-0.8Mpa
Max Pressure Resistance 1.2Mpa
Working Temperature -5-50°C(41-122F)
Power Consumption

AC380V:2.50VA. AC220V:2.0VA.AC110V:2.5VA.AC24V:3.5VA. DC24V:3.0W. DC12V:2.5W

Voltage Range -15%~+10%

Insulation/Protection Class

F Class IP65(DIN40050)
wire Form Lead Wire or Connector Type
Max Action Frequency 5 Cycle/Sec 3 cyce/Sec  5cyce/sec 3 Cycle/Sec
Shortest Excitation Time 0.05 Second

About

Ningbo Hengmin Lingtong Pneumatic Complete Set Co., Ltd.

Ningbo Hengmin Lingtong pneumatic complete set Co., Ltd. (LTPC), located in Xikou, Ningbo, Zhejiang Province, is famous China 400 series air control valve Company and OEM 400 series air control valve Suppliers. Since its establishment in 1996, LTPC has been rooted in the pneumatic industry for more than 30 years. From a small workshop, LTPC has developed into a 18000 square meter production base with Japanese import processing center and Ningbo Municipal "pneumatic product R & D center".
Relying on advanced equipment, innovative technology and perfect detection means, LTPC provides customized products and all-round services for customers. From F.R.L combination, solenoid valve, directional valve, pneumaitc cylinder and accessories to complete sets of pneumatic systems, our Custom 400 series air control valve are all over China, Southeast Asia, the Middle East, Europe and the United States and other markets, and widely affect machinery, metallurgy, food, packaging, textile, electronics and other fields.
