Custom LT22JF LT23JF series pneumatically controlled two-position two-way, two-position three-way stop valve Suppliers, OEM Company

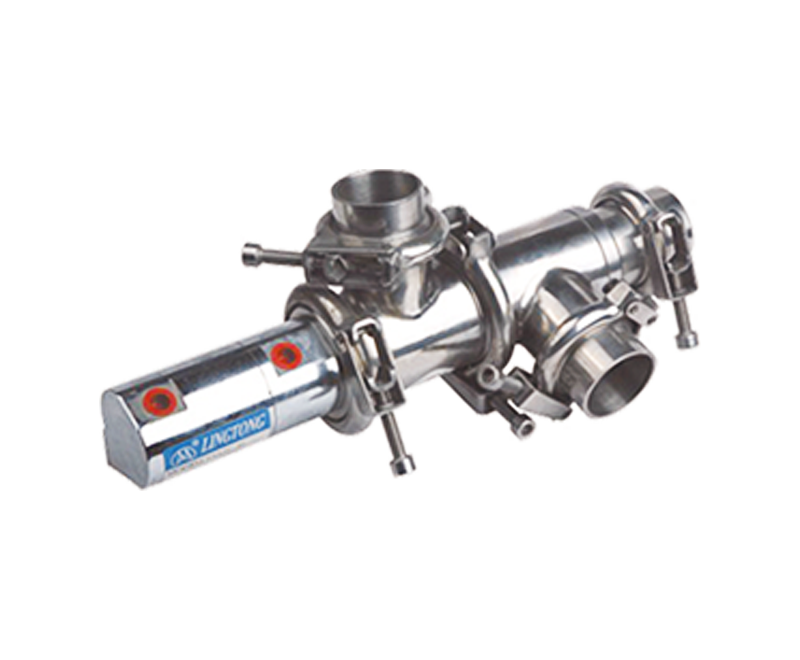

LT22JF LT23JF series pneumatically controlled two-position two-way, two-position three-way stop valve

Location:	China
Business Type:	Manufacturer, Exporter
Brands:	Own Brand, OEM,
Certificate:	ISO9001, CE
Model:
Terms of payment and delivery:	FOB NINGBO
Minimum order quantity:	1 PCS
Price:	Consultation
Delivery time:	15 days after confirmation of artwork and deposit
Payment method:	TT 30% deposit，balance against BL copy

Quote Now

Specification		LT23JF
Parameter		32	40	50	65	80	100	125	150
Nominal Diameter	mm	32	40	50	65	80	100	125	150
Applicable Flow	L/h	5-9	9-14	14-23	23-36	36-55	55-86	86-130	130-200
Parietal Layer of Adapter's Outside Diameter	mm	36-2	45-2.5	57-3.5	73-4	88-4	108-4	133-4	159-4.5
Outside Diameter of Valve Body's Main Tube	mm	46	57	70	85	114	133	159	194
Interfale Diameter of Cylider	mm	32	40	40	63	80	100	125	150
Piston Stroke	mm	11	14	18	24	30	38	47	56
Interfale Thread		G1/8"	G1/8"	G1/4"	G1/4"	G1/4"	G1/4"	G3/8"	G3/8"
Outside Diameter of air-Tube	mm	6	6	8	8	10	10	12	12
Air Source Pressure	Mpa	0.15-08
Close Power of valve core	mm	82	159	250	416	736	1103	1634	2757
The Oretrcal Stroke of valve Core	mm	9	11	14	20	25	31	38	45
Axial Pitch From a to B	mm	77.5	86.5	98.5	110.7	139.7	172.7	204	241.7
AXiai Pitch From a to c	mm	55.4	59.5	69.7	79.7	96.7	111.7	136.7	152.7
HRadial Pitch From b to c	mm	88	97	120	135	174	193	239	274
otal Lengh	mm	3.5	348	393	467	545	630	747	860

Ningbo Hengmin Lingtong Pneumatic Complete Set Co., Ltd.

Ningbo Hengmin Lingtong pneumatic complete set Co., Ltd. (LTPC), located in Xikou, Ningbo, Zhejiang Province, is famous China LT22JF LT23JF series pneumatically controlled two-position two-way, two-position three-way stop valve Company and OEM LT22JF LT23JF series pneumatically controlled two-position two-way, two-position three-way stop valve Suppliers. Since its establishment in 1996, LTPC has been rooted in the pneumatic industry for more than 30 years. From a small workshop, LTPC has developed into a 18000 square meter production base with Japanese import processing center and Ningbo Municipal "pneumatic product R & D center".
Relying on advanced equipment, innovative technology and perfect detection means, LTPC provides customized products and all-round services for customers. From F.R.L combination, solenoid valve, directional valve, pneumaitc cylinder and accessories to complete sets of pneumatic systems, our Custom LT22JF LT23JF series pneumatically controlled two-position two-way, two-position three-way stop valve are all over China, Southeast Asia, the Middle East, Europe and the United States and other markets, and widely affect machinery, metallurgy, food, packaging, textile, electronics and other fields.
