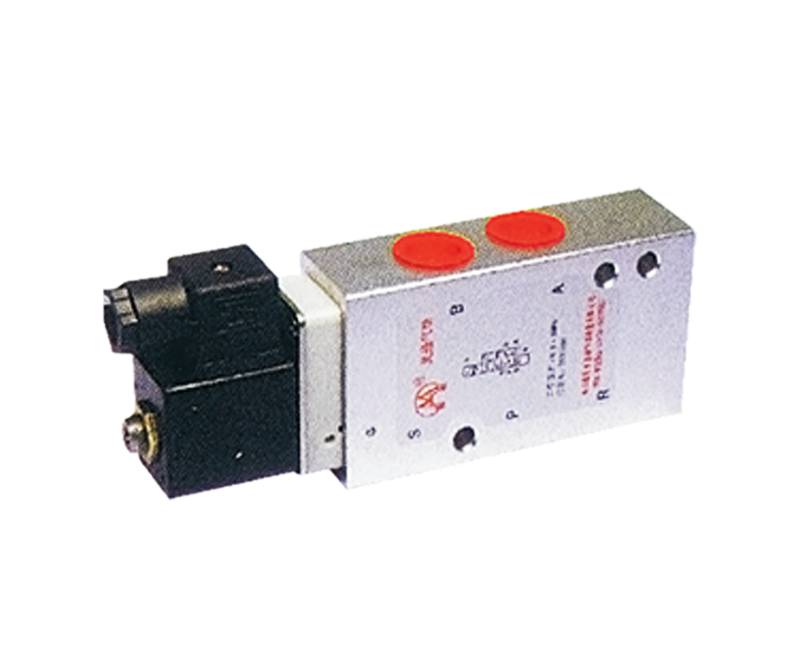

OEM 2630 Hilong series solenoid valve

2630 Hilong series solenoid valve
  • 2630 Hilong series solenoid valve

2630 Hilong series solenoid valve

Location:China
Business Type:Manufacturer, Exporter
Brands:Own Brand, OEM,
Certificate:ISO9001, CE
Model:
Terms of payment and delivery:FOB NINGBO
Minimum order quantity:1 PCS
Price:Consultation
Delivery time:15 days after confirmation of artwork and deposit
Payment method:TT 30% deposit,balance against BL copy

Specification

Mode 8020750 8022750 8021750 8021850 8022850 2630600 2636000 2636200 2637050 2637250
Working Medium 40 Micron Filtered Air
The Position Counting Two- position Three-Way TWo- Position four-Way TWo- Position Five-Way
Port size

Air Inlet=Air Outlet=G1/4"

Air Inlet=Air Outlet=G1/2"

Air Inlet=Air Outlet Air Inlet=Air Outlet=G1/8"

Air Inlet=Air Outlet=G1/4"

Air Inlet=Air Outlet=G1/2"

Working Temperature -5~50c(41-122F)
Effective Sectional Area 10mm²(Cv=0.56) 40mm²(Cv=2.23) 4mm²(Cv=0.23) 10mm²(Cv=0.56) 40mm²(Cv=2.32)
Working Pressure 0.15-1.0Mpa
Max Pressure Resistance 1.2Mpa
Insulation& Protection Class F Class/IP65(DIN40050)
Wire Form Lead Wire or Connector Type
Voltage Range 10%
