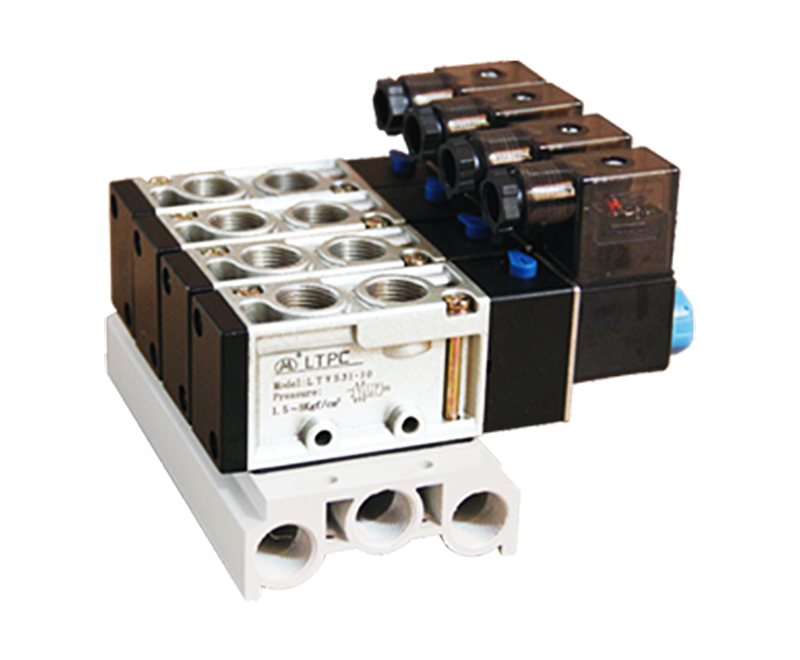

OEM LTVA.530 Series Die-casting Solenoid Valve, Pneumatic Control Valve

LTVA.530 Series Die-casting Solenoid Valve, Pneumatic Control Valve
  • LTVA.530 Series Die-casting Solenoid Valve, Pneumatic Control Valve

LTVA.530 Series Die-casting Solenoid Valve, Pneumatic Control Valve

Location:China
Business Type:Manufacturer, Exporter
Brands:Own Brand, OEM,
Certificate:ISO9001, CE
Model:
Terms of payment and delivery:FOB NINGBO
Minimum order quantity:1 PCS
Price:Consultation
Delivery time:15 days after confirmation of artwork and deposit
Payment method:TT 30% deposit,balance against BL copy

Specification

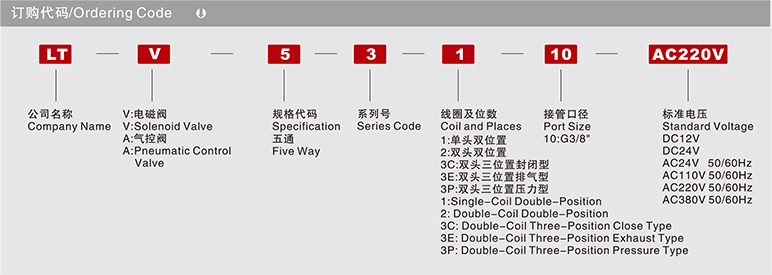

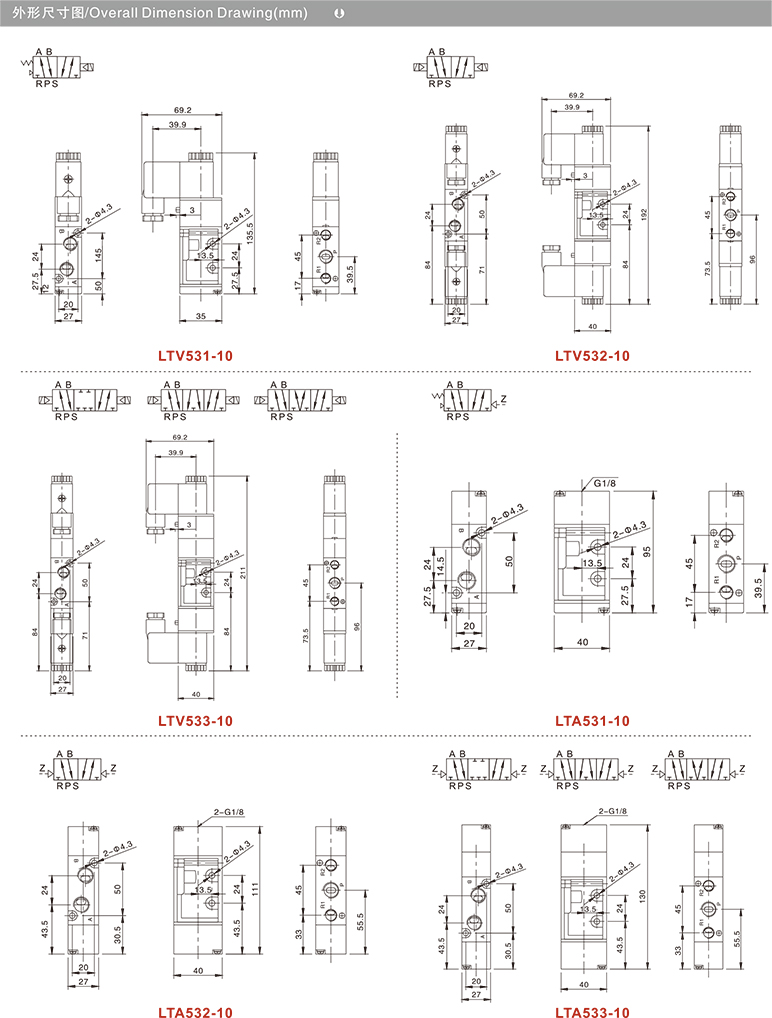

Model LTV531-10 LTV532-10 LTV533C-10 LTV533E-10 LTV533P-10
LTA531-10 LTA532-10 LTA533C-10 LTA533E-10 LTA533P-10
Working Medium 40 Micron Filtered Air
Operating Method Internal Pilot Type
Port size

Air Inlet=Air Outlet=3/8" Air Exhaust=G1/4"

The Position Counting Two- Position Five-Way Three- Position Five-Way
Effective Sectional Area 30mm²(Cv=1.67) 18mm²(Cv=1)
Working Pressure 0.15-0.8Mpa
Max Pressure Resistance 1.2Mpa
Working Temperature -5-60°C

Protection Class

IP65
Max Action Frequency 5 Cycle/Second 3 Cycle/Second
Voltage Range -15%~+10%
Shortest Excitation Time 0.05 Second

About

Ningbo Hengmin Lingtong Pneumatic Complete Set Co., Ltd.

Ningbo Hengmin Lingtong pneumatic complete set Co., Ltd. (LTPC), located in Xikou, Ningbo, Zhejiang Province, is famous China LTVA.530 Series Die-casting Solenoid Valve, Pneumatic Control Valve Company and OEM LTVA.530 Series Die-casting Solenoid Valve, Pneumatic Control Valve Suppliers. Since its establishment in 1996, LTPC has been rooted in the pneumatic industry for more than 30 years. From a small workshop, LTPC has developed into a 18000 square meter production base with Japanese import processing center and Ningbo Municipal "pneumatic product R & D center".
Relying on advanced equipment, innovative technology and perfect detection means, LTPC provides customized products and all-round services for customers. From F.R.L combination, solenoid valve, directional valve, pneumaitc cylinder and accessories to complete sets of pneumatic systems, our Custom LTVA.530 Series Die-casting Solenoid Valve, Pneumatic Control Valve are all over China, Southeast Asia, the Middle East, Europe and the United States and other markets, and widely affect machinery, metallurgy, food, packaging, textile, electronics and other fields.
