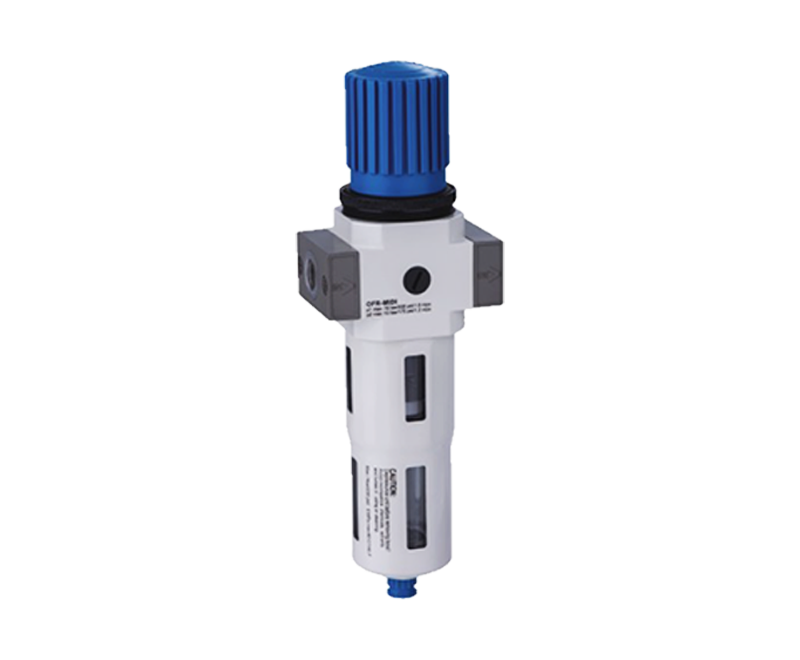

OFR series filter pressure reducing valve

Location:	China
Business Type:	Manufacturer, Exporter
Brands:	Own Brand, OEM,
Certificate:	ISO9001, CE
Model:
Terms of payment and delivery:	FOB NINGBO
Minimum order quantity:	1 PCS
Price:	Consultation
Delivery time:	15 days after confirmation of artwork and deposit
Payment method:	TT 30% deposit，balance against BL copy

Quote Now

Specification

Filter Regulators		MINI type			MIDI type			MAXI type
Manual Valve	Woking pressure:12bar40μm	OU-1/8-MINI	OU-1/4-MINI	OU-3/8-MINI	OU-3/8-MIDI	OU-1/2-MIDI	OU-3/4-MIDI	OU-3/4-MAXI	OU-1-MAXI
	Woking pressure:12bar40μm	OU-1/8-7-MINI	OU-1/4-D-7-MINI	OU-3/8-7-MINI	OU-3/8-7-MIDI	OU-1/2-7-MIDI	OU-3/4-7-MIDI	OU-3/4-7-MAXI	OU-1--7-MAXI
	Woking pressure:12bar40μm	OU-1/8-5M-MINI	OU-1/4-5M-MINI	OU-3/8-5M-MINI	OU-3/8-5M-MIDI	OU-1/2-5M-MIDI	OU-3/4-5M-MIDI	OU-3/4-5M-MAXI	OU-1--5M-MAXI
Manometer	0~12bar	OMA-40-16-1/8			OMA-50-16-1/4
	0~7bar	OMA-40-10-1/8			OMA-50-10-1/4
Working Medium		Compressed air
Features of Structure		Sintered filter with water sparator;MINI/MIDI: Diaphragm type regulator;
Mounting Type		Pipe mounting or foot mounting
Assembly Position		Vertical direction±5°/Vertica±5°

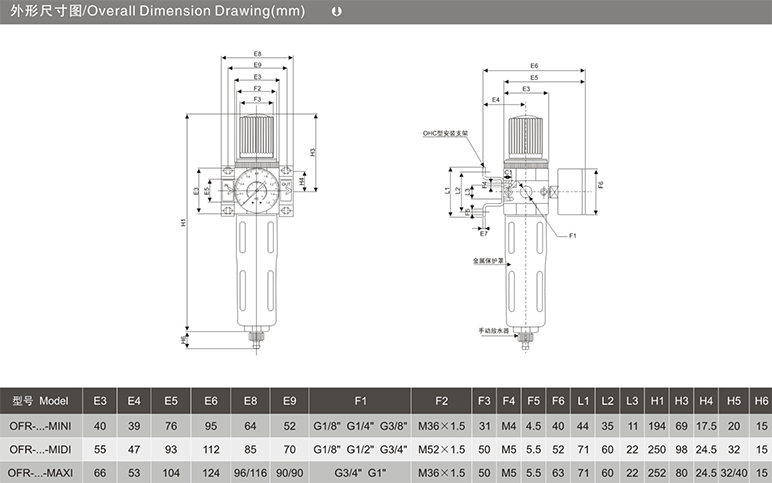

Dimension		G1/8"	G1/4"	G3/8"	G3/8"	G1/2"	G3/4"	G3/4"	G1"
Standard Nominal Flow Rate	OU-..(-A)	750	1400	1600	3100	3400	3400	9000	10000
	OU-..-7-(-A)	900	1500	1700	3400	3900	4000	9500	16000
	OU-..-5M.(-A)	650	1200	1350	2400	2500	2600	7300	7600
Primary Pressure	Manual valve Drain	1~16bar
Working Pressure		0.5~12bar/0.5~7bar
Min Stangard Nominal Flow Rate		31 L/min			61 L/min			10 L/min
Filter Precision		40um/5um
Capacity of Condensate Fluid		22ml
Temperature Range		0~60℃
Materials Information		Housing: Zinc Die-casting; Filter Bowl: PC; Meta Bowl Guard: Aluminium Alloy Sealing: NBR; Adjusting Knob: POM
