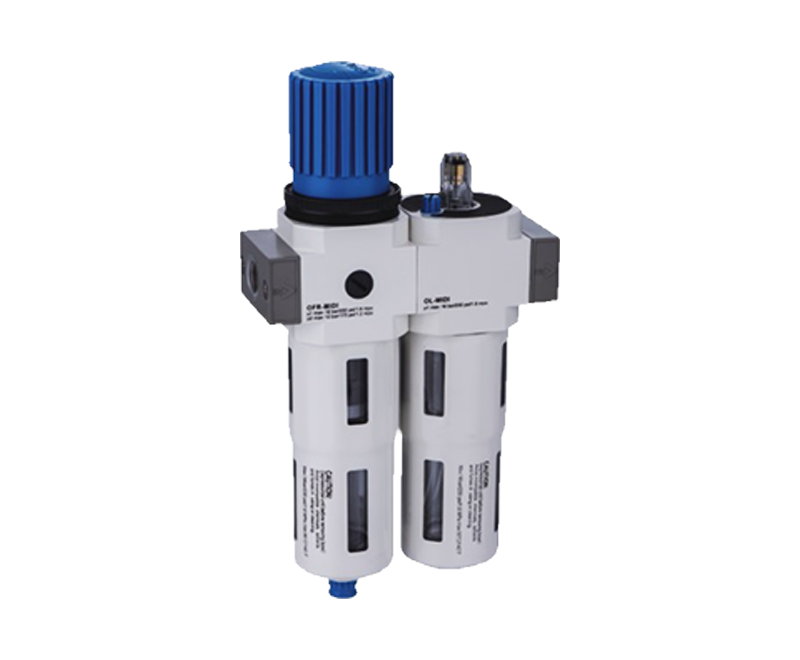

OEM OU series two-piece

OU series two-piece
  • OU series two-piece

OU series two-piece

Location:China
Business Type:Manufacturer, Exporter
Brands:Own Brand, OEM,
Certificate:ISO9001, CE
Model:
Terms of payment and delivery:FOB NINGBO
Minimum order quantity:1 PCS
Price:Consultation
Delivery time:15 days after confirmation of artwork and deposit
Payment method:TT 30% deposit,balance against BL copy

Specification

Filter Regulators MINI type MIDI type MAXI type

Manual Valve

Woking pressure:12bar40μm

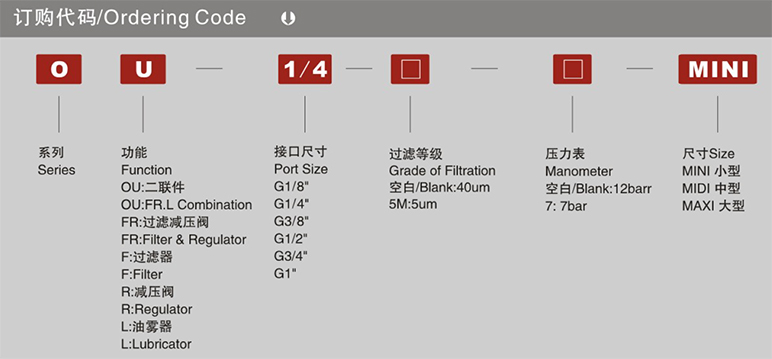

OU-1/8-MINI OU-1/4-MINI OU-3/8-MINI OU-3/8-MIDI OU-1/2-MIDI OU-3/4-MIDI OU-3/4-MAXI OU-1-MAXI

Woking pressure:12bar40μm

OU-1/8-7-MINI OU-1/4-D-7-MINI OU-3/8-7-MINI OU-3/8-7-MIDI OU-1/2-7-MIDI OU-3/4-7-MIDI OU-3/4-7-MAXI OU-1--7-MAXI

Woking pressure:12bar40μm

OU-1/8-5M-MINI OU-1/4-5M-MINI OU-3/8-5M-MINI OU-3/8-5M-MIDI OU-1/2-5M-MIDI OU-3/4-5M-MIDI OU-3/4-5M-MAXI OU-1--5M-MAXI

Manometer

0~12bar OMA-40-16-1/8 OMA-50-16-1/4
0~7bar OMA-40-10-1/8 OMA-50-10-1/4
Working Medium Compressed air
Features of Structure Sintered filter with water sparator;MINI/MIDI: Diaphragm type regulator;
Mounting Type Pipe mounting or foot mounting
Assembly Position Vertical direction±5°/Vertica±5°

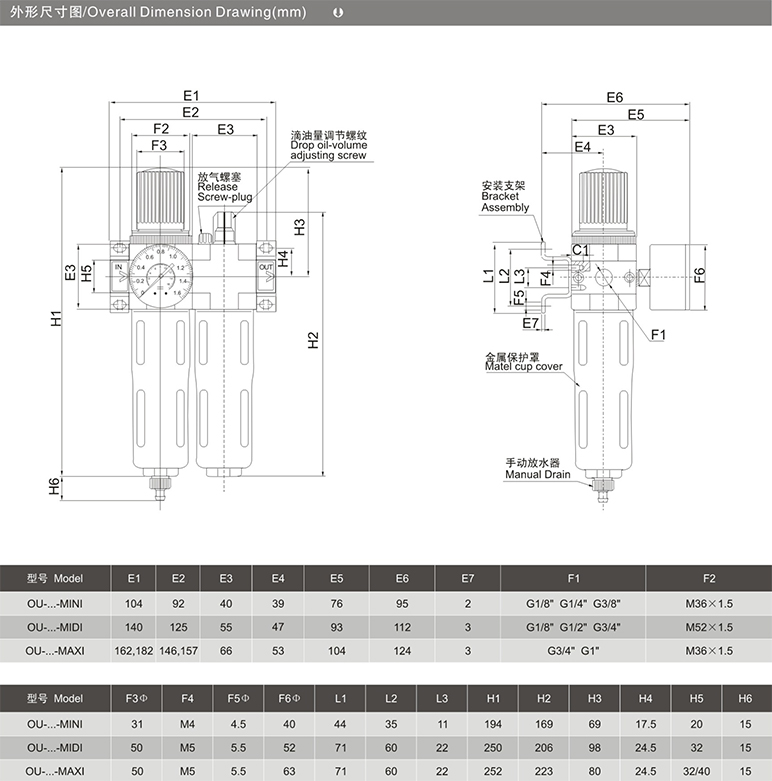

Dimension G1/8" G1/4" G3/8" G3/8" G1/2" G3/4" G3/4" G1"

Standard Nominal Flow Rate

OU-..(-A) 750 1400 1600 3100 3400 3400 9000 10000
OU-..-7-(-A) 900 1500 1700 3400 3900 4000 9500 16000
OU-..-5M.(-A) 650 1200 1350 2400 2500 2600 7300 7600

Primary Pressure

Manual valve Drain

1~16bar
Working Pressure 0.5~12bar/0.5~7bar
Min Stangard Nominal Flow Rate 31 L/min 61 L/min 10 L/min
Filter Precision 40um/5um
Capacity of Condensate Fluid 22ml
Temperature Range 0~60℃
Materials Information

Housing: Zinc Die-casting; Filter Bowl: PC; Meta Bowl Guard: Aluminium Alloy Sealing: NBR; Adjusting Knob: POM

About

Ningbo Hengmin Lingtong Pneumatic Complete Set Co., Ltd.

Ningbo Hengmin Lingtong pneumatic complete set Co., Ltd. (LTPC), located in Xikou, Ningbo, Zhejiang Province, is famous China OU series two-piece Company and OEM OU series two-piece Suppliers. Since its establishment in 1996, LTPC has been rooted in the pneumatic industry for more than 30 years. From a small workshop, LTPC has developed into a 18000 square meter production base with Japanese import processing center and Ningbo Municipal "pneumatic product R & D center".
Relying on advanced equipment, innovative technology and perfect detection means, LTPC provides customized products and all-round services for customers. From F.R.L combination, solenoid valve, directional valve, pneumaitc cylinder and accessories to complete sets of pneumatic systems, our Custom OU series two-piece are all over China, Southeast Asia, the Middle East, Europe and the United States and other markets, and widely affect machinery, metallurgy, food, packaging, textile, electronics and other fields.
